Welding Set

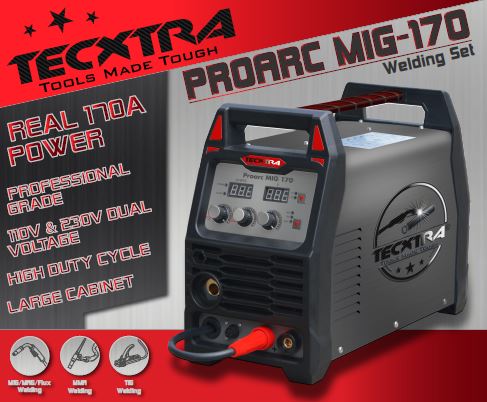

Tecxtra Proarc MIG-170 Welding Machine

Features & Advantages:

Real 170A POWER
Professional grade
120V & 240V Dual voltage
High duty cycle
Large side compartment
For flux core and solid core wire

Technical Specifications:

Input voltage

1 phase, 120 V~ or 240 V~

Frequency

50/60 Hz

Output current

240 V: 30 – 170 A (For MIG/MAG), 30 – 150 A (For MMA), 20 – 170 A (For TIG) 120 V: 30 – 140 A (For MIG/MAG), 30 – 70 A (For MMA),
20 – 90 A (For TIG)

Output voltage

240 V: 15.5 – 22.5 V (For MIG/MAG), 21.2 – 26 V (For MMA), 10.8 – 16.8 V (For TIG)120 V: 15.5 – 21 V (For MIG/MAG), 21.2 – 22.8 V (For MMA),10.8 – 13.6 V (For TIG)

Wire diameter

0.6 mm/0.025“, 0.8 mm/0.030“, 0.9 mm/0.035“

Machine size

19.3“ x 8.6“ x 14.5“

Weight

11.7 kg/26 lbs.

Included:

Tecxra Proarc MIG-170 Welding Machine
Elektrode holder
MIG torch, movable
MIG torch connector
TIG torch
Transfer plug
Earth clamp
Welding screen & Brush
Accessories
User manual
